MGPM20 Series Cylinder Introduction

I. Core Positioning and Structure

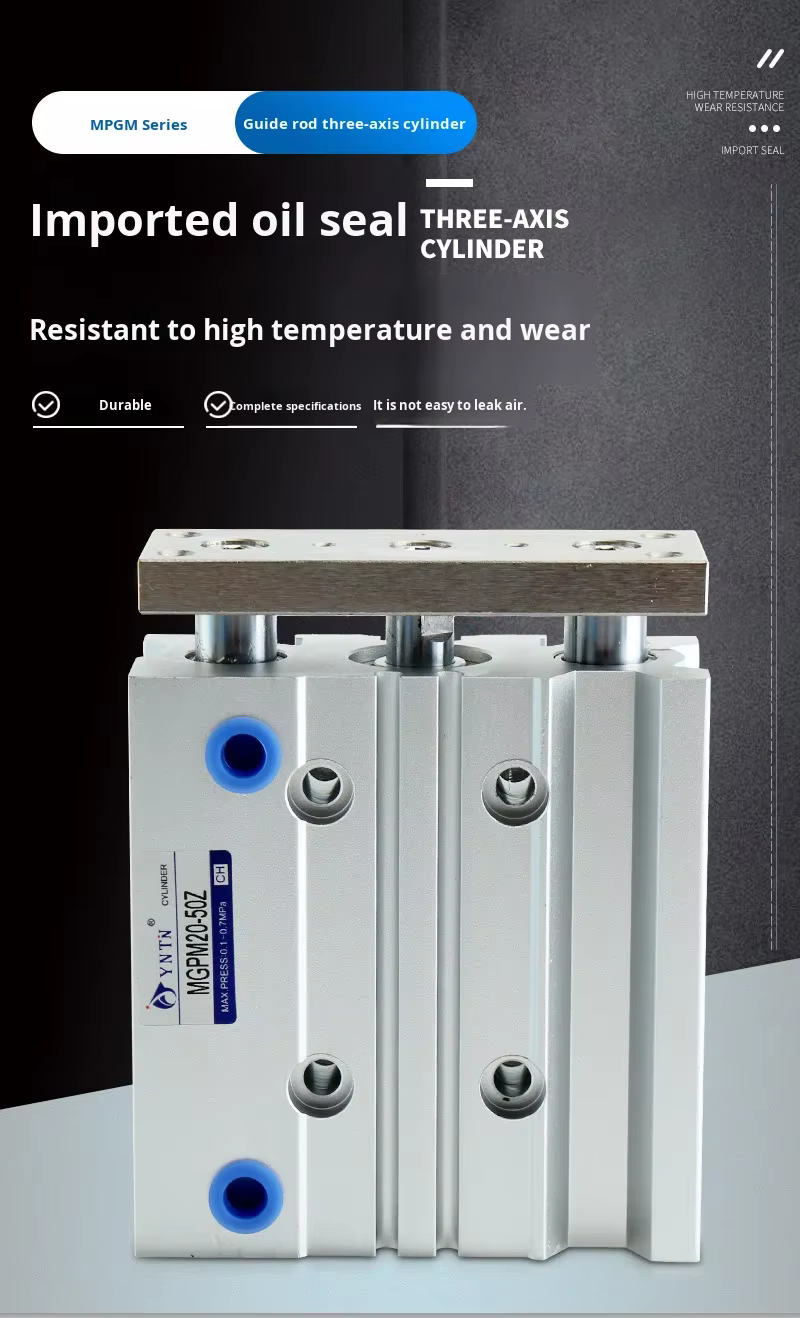

• Core Type: Single-rod double-acting, thin-type triple-axis cylinder with guide rods, equipped with built-in sliding bearings. The non-rotation accuracy is ±0.07°. A built-in magnetic ring allows for the installation of magnetic switches.

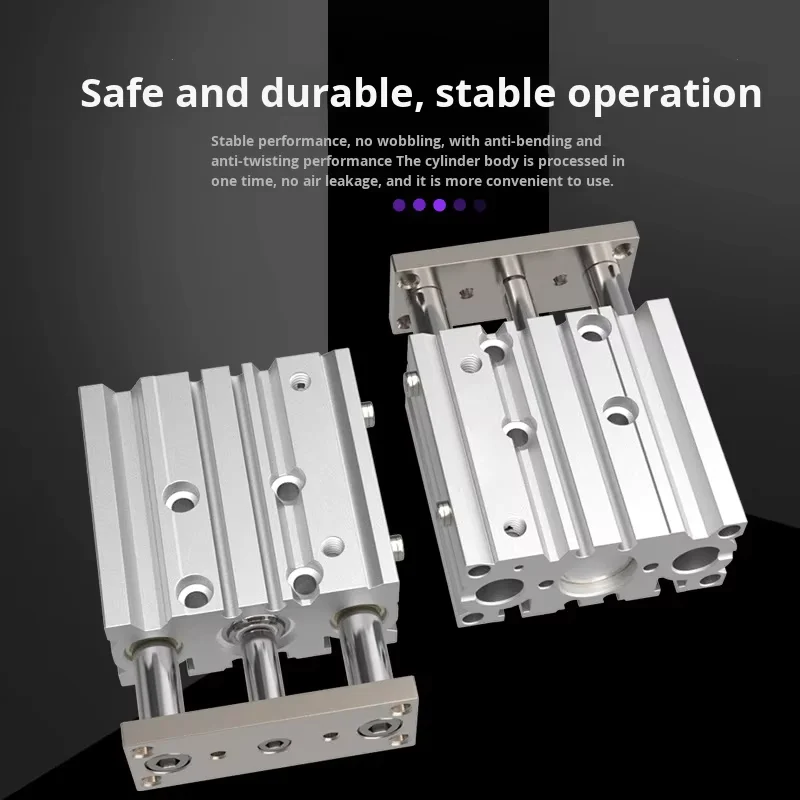

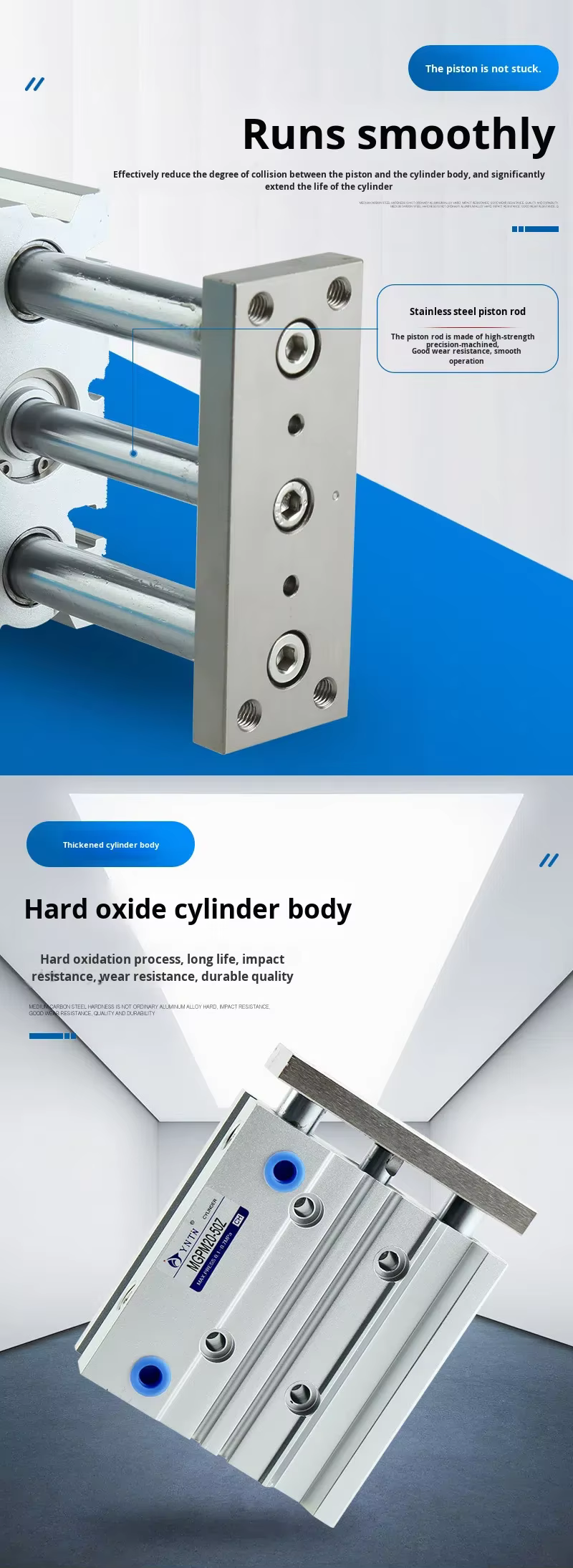

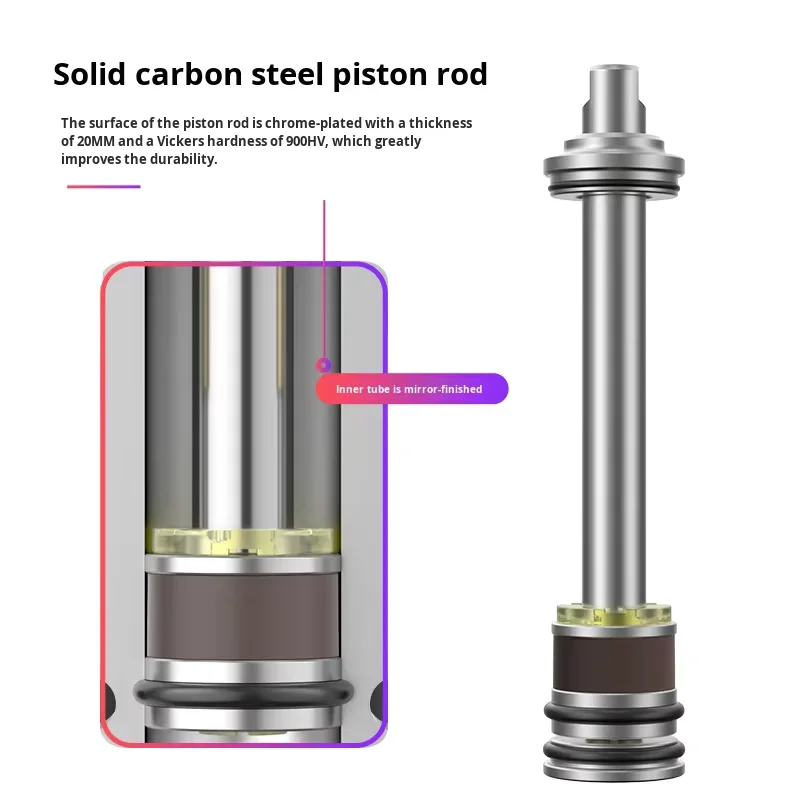

• Structural Features: The triple-axis guide rod design disperses load and prevents piston rod deflection. The slim body saves installation space, with polyurethane cushioning on both sides for shock absorption. The cylinder barrel, end caps, and piston are made of aluminum alloy, while the piston rod is stainless steel—ensuring overall lightweight and durability.
• Model Nomenclature: MGPM20-S (where S denotes stroke length, e.g., 20 = 20mm, 125 = 125mm). The common suffix Z indicates the standard model, and M indicates the lubrication retention function. Versions with end locks or pneumatic cushioning can be customized upon request.

II. Unified Technical Parameters

III. Key Differences and Thrust of Different Stroke Specifications (MGPM20-S)

IV. Application and Selection Guidelines

1. Typical Applications: 3C electronic assembly, automated dispensing/screw locking, small part handling, testing equipment positioning, light industry packaging lines, and other space-limited automated scenarios.
2. Selection Tips:
   • Select models based on load weight and stroke requirements. Choose short-stroke models for light-load, high-frequency operations; opt for 100/125mm strokes for handling tasks based on distance needs.
   • For precise rotation prevention or high-frequency movement, upgrade to the MGPA series with high-precision ball bearings.
   • For position locking requirements, select versions with end locks; for enhanced cushioning, add external hydraulic buffers.

V. Installation and Maintenance

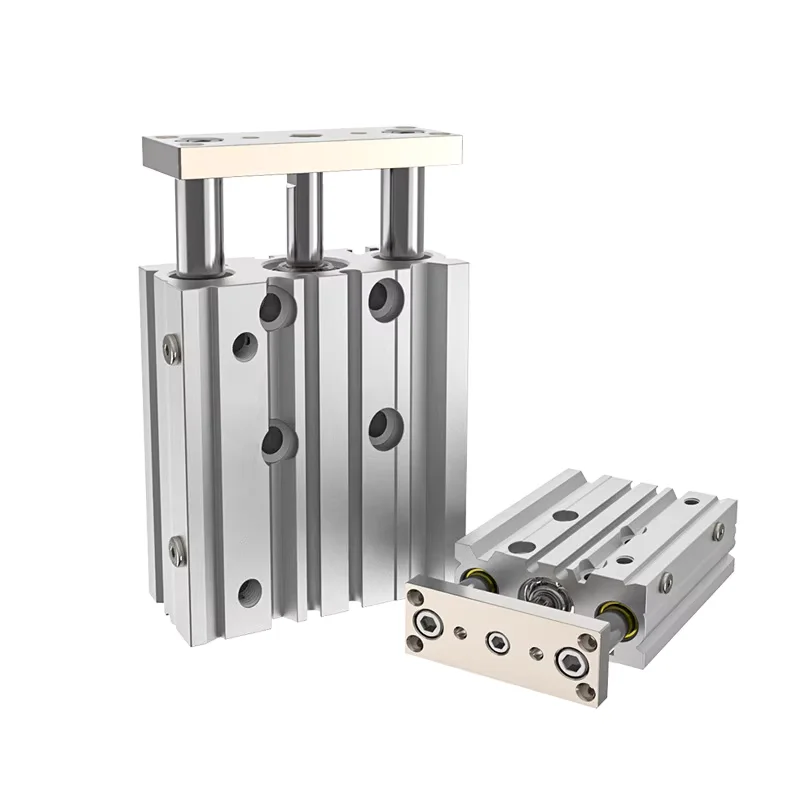

• Installation Methods: Supports multiple mounting options including top, side, bottom, and T-slot side mounting, adapting to different equipment layouts.
• Maintenance Tips: Regularly check for piping leaks and maintain dry, clean air supply. For long-term high-frequency use, periodic lubrication is recommended (even for oil-free models, minimal lubrication can be applied as needed).
