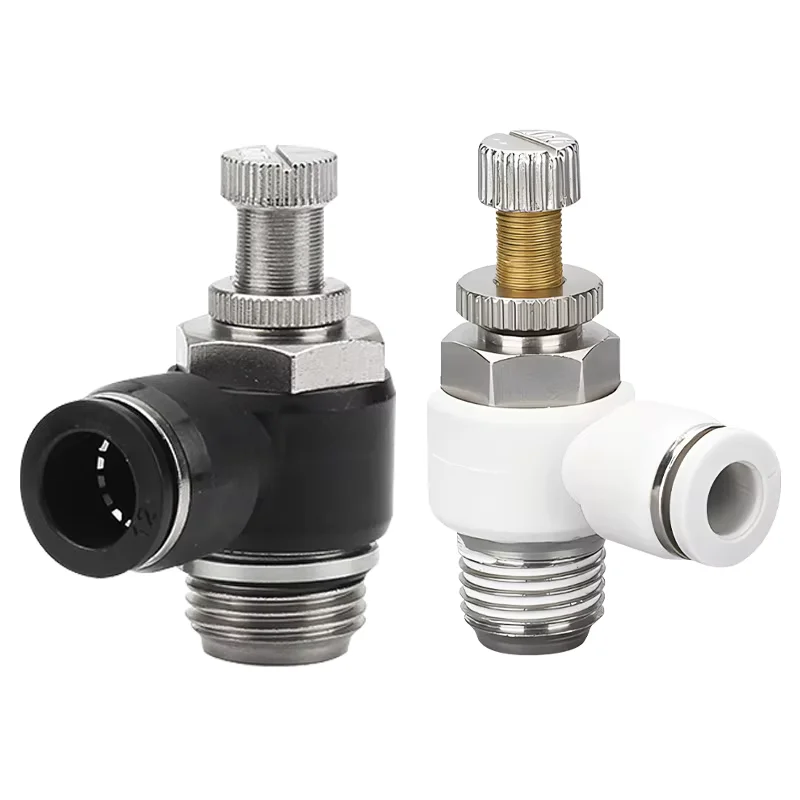

Throttle valve quick connector available in full specifications SL6-01/8-02/10 pneumatic component quick plug with leak-proof

Place of Origin:	CHINA
Brand Name:	Edith
Model Number:	SL Quick Connector
Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Carton package/Wooden cases
Delivery Time:	Depending on the order quantity
Payment Terms:	L/C, T/T
Supply Ability:	Negotiable

Inquiry Contact Us

Description

Is there a problem? Please contact us to serve you!

+86-18015634179

[email protected]

Inquiry

Detail Information

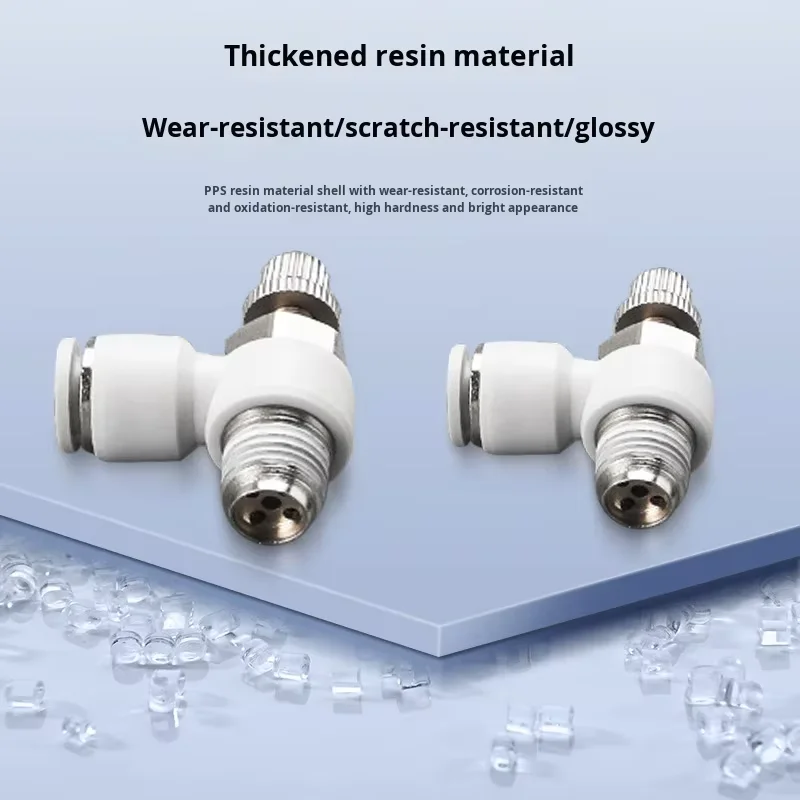

Disc diameter	Customized Accepted	Material:	Plastic

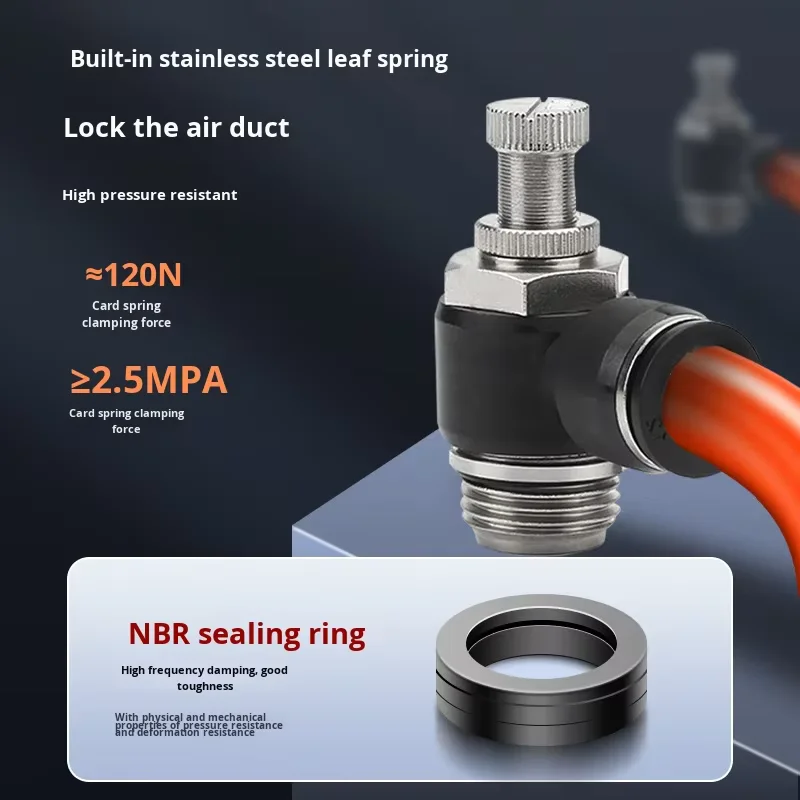

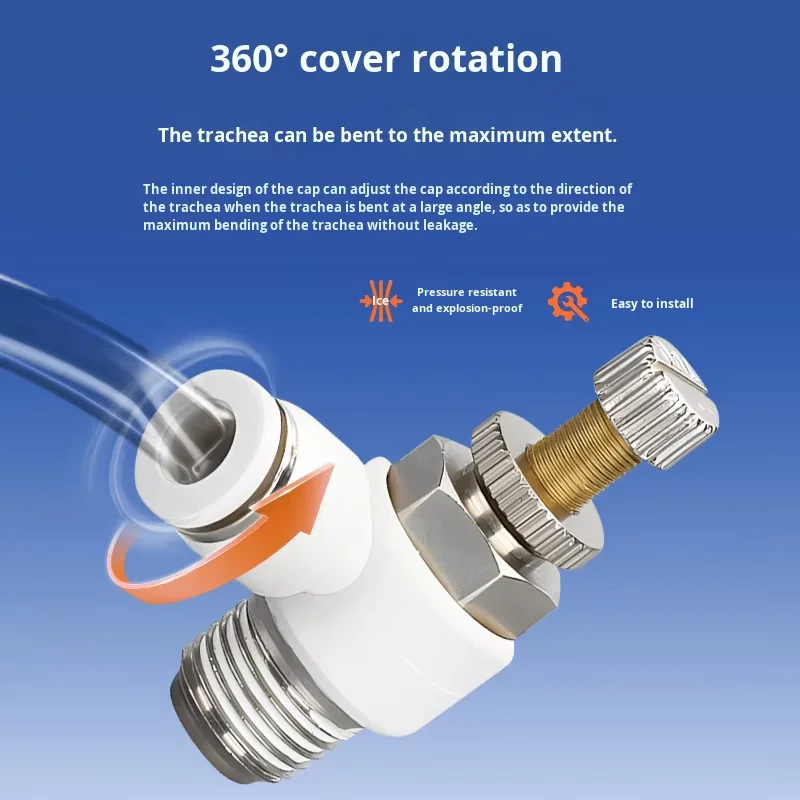

Highlight 1:	360-degree rotation	Highlight 2:	High voltage resistance, no tripping
Application:	Industry	Name:	SL Quick Connector
High Light:	Antioxidant

Description

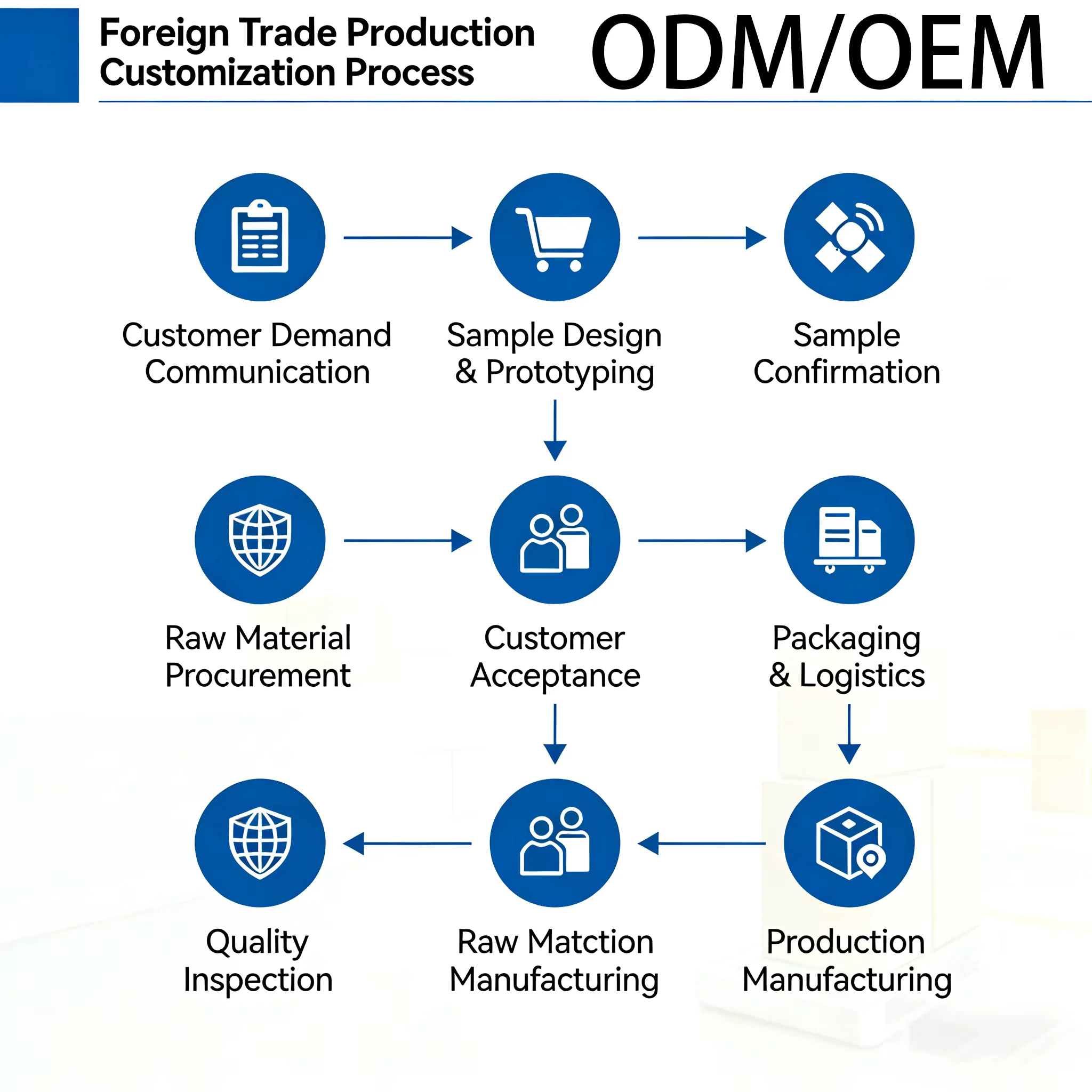

Process Steps	ODM	ODM
Step 1	CustomerRequirement	CustomerRequirement
Step 1	SchemeAppraisal	SchemeAppraisal
Step 1	ProfileConfirmation（Packing Dimension Functional）	Negotiation Cooperation
Step 1	Sample Design	Quote
Step 1	Small BatchProduction	Sample Confirmation
Step 1	Product Confirmation	Small Batch Production
Step 1	-	Product Confirmation

SL vacuum regulating valves are a type of pressure/flow control component for vacuum systems, usually marked with the "SL" series identifier. They are commonly used in scenarios such as pneumatic throttling, vacuum pressure stabilization and flow path switching, and their models consist of series, specification, interface, control mode and additional characteristics.

Application Scenarios

Pneumatic vacuum suction cups, vacuum adsorption and handling systems.
Process equipment such as vacuum drying, distillation and degassing.
Automated production lines in semiconductor, electronics, packaging and other industries.
Laboratory vacuum devices and calibration systems.

Selection Key Points

Vacuum range: Match the working vacuum degree of the system (e.g., rough vacuum, high vacuum).
Flow demand: Select the appropriate caliber according to pump displacement and cavity volume to avoid insufficient flow.
Interface specification: Confirm the outer diameter of the air pipe and thread type (such as M5/Rc1/8/Rc1/4, etc.).
Control mode: Choose manual, pneumatic or electric type according to actual needs.
Additional characteristics: Select restrictor type (B), magnetic or explosion-proof models to adapt to special working conditions.

item	value
Customized support	OEM
Fluid Used	Clean compressed air,vacuum
Application	Hardware machinery
place of origin	Sujiang China
Ambient and Fluid Temperature	0~60°C
Low Pressure Usage	-99.99~0 kPa(-750~0 mmHg)
material	Plastic
Fluid	Air, vacuum
Normal Operating Pressure	0~0.9MPa (0~9.2kgf/cm?)
PU Hose / Nylon TubeHose Type	PU Hose / Nylon Tube
